WitchHunter Performance can clean & test most all auto, marine, and motorcycle fuel injectors.A look at a few of the many types of Fuel Injectors we service. |
|
Bosch top feedProbably the most common type in use. Fuel goes in the top and exits out a single hole in the bottom. Most have a high impedance coil and uses a tapered needle (pintle) that seals into a tapered seat until energized. |
|
Bosch top feedNew style, this one's out of a Mustang |
|
GM Multec top feedRochester / Delphi Most use a ball or plate that sits in a seat instead of a tapered pintle. Some have a single exit hole and others have many smaller holes to improve atomization. |
|
LucasUses a disc and seat design. Fairly fast response times for it's large physical size. |
|
Rochester / DelphiNew style |
|

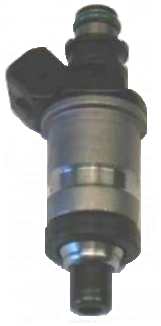

KeihinHonda & some marine Shown with spacer and lower seal. |
|
Denso top feedlate model |
|

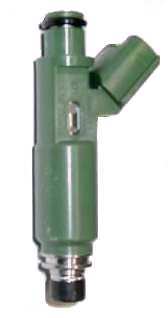

DensoShorter version, commonly used motorcycles and outboards. Also found in some WRX's. |
|
WeberThis is out of a Lamborghini Diablo |
|
WeberSmall in size, great for cramped spaces. Used in Edelbrock EFI systems and various motorcycles. Also made and sold by Marelli. |
|
SiemensLate model |
|
300ZX side feedJECS The fuel flows in the side thru the screen. These early versions are plagued with coil winding problems. |
|
MR2 side feedDenso Another side feed that is small and flows a lot of fuel |
|
GM TBI-700 side feedUsed on some smaller engines |
|
Mitsubishi Starion throttle body typeThis secondary injector flows 1050 cc's. Unfortunately they are very expensive and prone to external leaks. |
|
GM throttle body injectorOne or two of these are mounted where the carburetor used to be. Most all new vehicles have switched to multi- port injectors (one per cylinder). |
|
Toyota cold start injectorSupplies extra fuel during start-up and while warming up. |
|
